slide 9

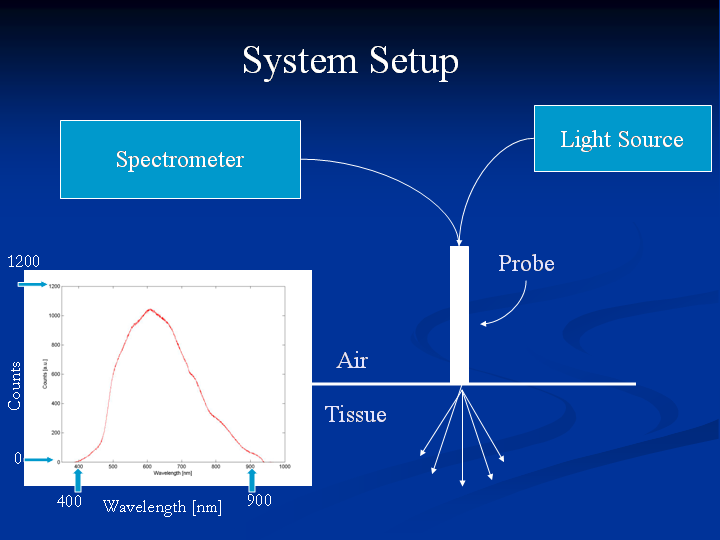

This schematic represents the system used to take the reflectance measurements. The light source is an LS-1 Ocean Optics tungsten-halogen light source. The white light is emitted out the fiber probe and into the tissue.
