A prototype polarization camera.

Two images are acquires: one parallel and one perpendicular, based on how the polarizer in front of the camera is oriented. Then these two images are algebraically combined to yield a "POLARIZATION IMAGE".

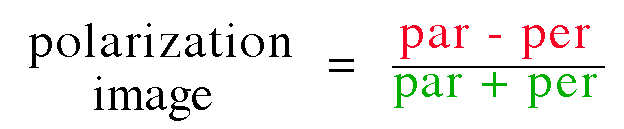

equation

The numerator is sensitive to polarized light, rejects randomly polarized diffuse reflectance.

Normalization by the denominator cancels common attenuation due to melanin pigmentation.
