The basic idea.

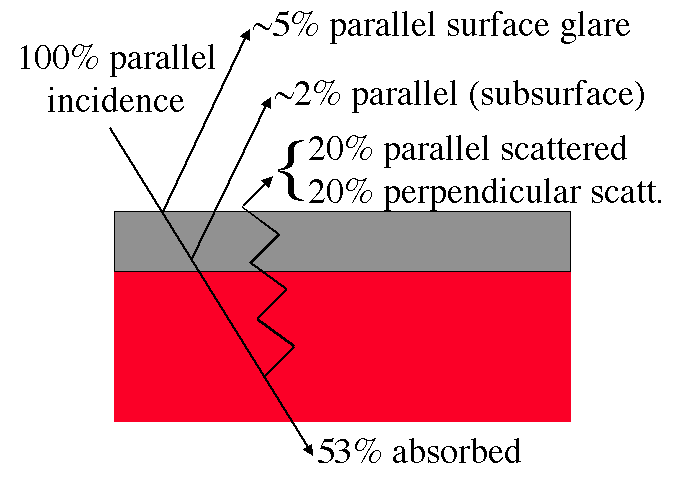

Illuminate the skin with linearly polarized light, oriented "parallel" to the scattering plane defined by the source-tissue-observer plane. As light enters the skin, about 5% is reflected from the surface as glare. About 2% is reflected from the subsurface superficial tissues and is still polarized. About 40% penetrates deeply and is backscattered to the surface after multiple scatterings which randomize the orientation of polarization, hence 20% is parallel and 20% is perpendicular. About 53% of the incident light is absorbed by the skin and does not escape.

reflectances
